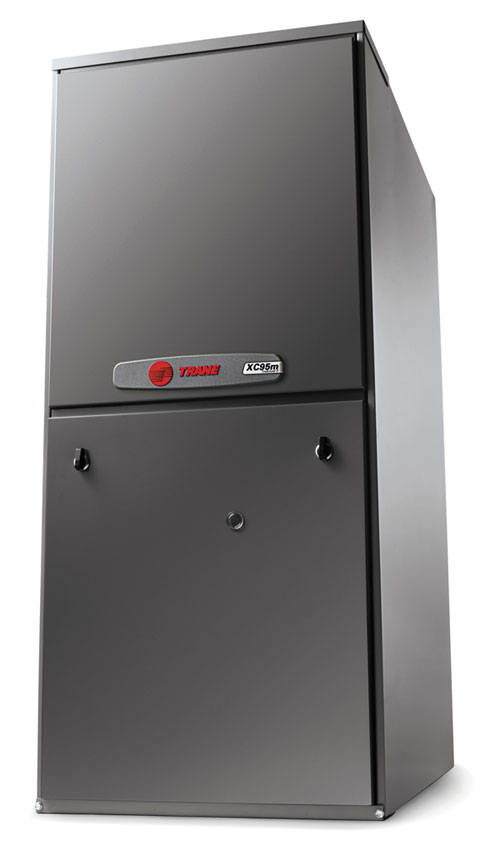

Trane
XC95m
Gas Furnace:
|
 |
XC95m
modulating Upflow/Horizontal
Furnace
models
|
Model |
Nominal Tons |
AFUE |
Height
(in.) |
Width
(in.) |
Depth
(in.) |
|
TUHMB060ACV3VA |
3 |
95.00 |
40 |
17.5 |
28 |
|
TUHMB080ACV3VA |
3 |
95.00 |
40 |
17.5 |
28 |
|
TUHMC100ACV4VA |
4 |
95.00 |
40 |
21 |
28 |
|
TUHMD120ACV5VA |
5 |
95.00 |
40 |
24.5 |
28 |
XC95m
modulating Downflow/Horizontal
Furnace models
|
Model |
Nominal Tons |
AFUE |
Height
(in.) |
Width
(in.) |
Depth
(in.) |
|
TDHMB060ACV3VB |
3 |
95.00 |
40 |
17.5 |
28 |
|
TDHMB080ACV3VA |
3 |
95.00 |
40 |
17.5 |
28 |
|
TDHMC100ACV4VA |
4 |
95.00 |
40 |
21 |
28 |
|
TDHMD120ACV5VB |
5 |
95.00 |
40 |
24.5 |
28 |
XC95m Consumer Brochure:
|
|
Efficient Performance
Communicating technology in a fully modulating furnace for the ultimate
comfort and greater efficiency. The advanced ComfortLink™ II allows the
XC95m to constantly calibrate itself for optimal performance year after
year.
-
Up to 95% AFUE
-
Communicating capability
-
Fully modulating heat
ComfortLink™ II Communicating Capability
ComfortLink™ II communicating technology
connects all of your key components so your system automatically charges,
configures and calibrates for optimal performance through the lifetime of
your products.
Comfortable, Even Heating
Variable-speed fan motor adjusts speed to provide a consistent flow of
warm, comfortable air with quiet operation.
Cleaner, Healthier Indoor
Air
Add
Trane CleanEffects™ to your system for advanced
air filtration that removes more dust, pollen and other irritants from
conditioned air for a cleaner, healthier, more comfortable home.
Every Trane furnace is packed with high-quality
components. Each helps ensure that time after time, your unit will provide
total comfort your family can rely on. The XC95m includes:
-
ComfortLink™ II communicating capability
-
Communicating user interface
-
Variable-speed blower motor
-
Fully modulating gas heat provides greater fuel
efficiency and ultimate comfort control
-
Heavy gauge, two-tone powder-painted cabinet
-
Increased dehumidification with Comfort-R™
-
Durable adaptive silicon nitride hot surface igniter
-
Multi-port, in-shot burners
-
One-piece aluminized steel primary heat exchanger
-
24-volt fuse to protect controls
-
Insulated cabinet for quiet operation
-
AL29-4C stainless steel secondary heat exchanger
-
Cleanable filter with spring-loaded filter rack
-
Compatible with ERV, humidifier and air cleaner
